System information
VELFAC Ribo wood/aluminium is a window and door system characterized by traditional elegance.
It consists of windows, casement doors, patio doors, and sliding doors in wood/aluminium, produced as a traditional timber frame/sash model with an external aluminium cladding.
The windows are suitable for traditional English style homes and the patio doors are designed for patios, balconies in multi-storey buildings, and French balconies.
It consists of windows, casement doors, patio doors, and sliding doors in wood/aluminium, produced as a traditional timber frame/sash model with an external aluminium cladding.
The windows are suitable for traditional English style homes and the patio doors are designed for patios, balconies in multi-storey buildings, and French balconies.
Technical specifications
- Outward opening windows and casement doors in wood / aluminium
- Inward and outward opening patio doors in wood / aluminium
- SBD accredited
- Uw value: down to 0.8 W/m²K
- Glazing options: 32mm double or 52mm triple glazing
- A comprehensive 10 year warranty on windows and 5 year on all door types
VELFAC Ribo wood/aluminium is a window and door system characterized by traditional elegance.
It consists of windows, casement doors, patio doors, and sliding doors in wood/aluminium, produced as a traditional timber frame/sash model with an external aluminium cladding. The patio doors are suitable for traditional English style homes and designed for patios, balconies in multi-storey buildings, and French balconies.
It consists of windows, casement doors, patio doors, and sliding doors in wood/aluminium, produced as a traditional timber frame/sash model with an external aluminium cladding. The patio doors are suitable for traditional English style homes and designed for patios, balconies in multi-storey buildings, and French balconies.
Technical specifications
- Inward and outward opening patio doors in wood / aluminium
- SBD accredited
- Uw value: down to 0.8 W/m²K
- Glazing options: 32mm double or 52mm triple glazing
- A comprehensive 5 year warranty on all door types
Window design
The design consists of the combination of sash profile and glazing bars.
Frame/sash profile
In VELFAC Ribo wood/aluminum, the fixed and opening functions look different. The fixed consist of a slim frame profile only, while the opening functions consist of a wider frame/sash profile.
If you want the same looks throughout the project, a fixed casement can be supplied in stead of the fixed light.
You can also choose between 3-layer and 2-layer glazing.
Mullions and transoms
The frame can be divided with mullions and transoms. This gives the option of different opening functions in the same element.
Glazing bars
Each sash can be divided with glazing bars to achieve a specific design expression. VELFAC Ribo wood/aluminium is available with horizontal, vertical and cross glazing bars.
Frame/sash profile
In VELFAC Ribo wood/aluminum, the fixed and opening functions look different. The fixed consist of a slim frame profile only, while the opening functions consist of a wider frame/sash profile.
If you want the same looks throughout the project, a fixed casement can be supplied in stead of the fixed light.
You can also choose between 3-layer and 2-layer glazing.
Mullions and transoms
The frame can be divided with mullions and transoms. This gives the option of different opening functions in the same element.
Glazing bars
Each sash can be divided with glazing bars to achieve a specific design expression. VELFAC Ribo wood/aluminium is available with horizontal, vertical and cross glazing bars.
Frame/sash profiles
Glazing bar options in general
Glazing bar options for sliding door

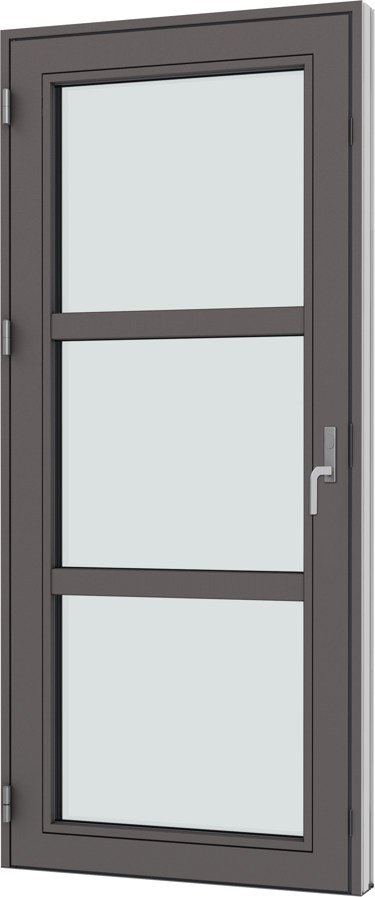

Glazing bars
Vertical and horizontal glazing bars can be used to:
They can also be used to combine two different types of glazing in the same sash e.g. for ‘apron’ areas of glazing.
- continue a uniform pattern where mullions or transoms have been used
- create a Georgian style window by using a cross within each unit of glazing.
They can also be used to combine two different types of glazing in the same sash e.g. for ‘apron’ areas of glazing.
Glazing bar options in general
Glazing bar options for sliding door
Colours, materials and surface finish
VELFAC wood/aluminium windows and casement doors are made of hard-wearing materials that require a minimum of maintenance.
We are careful when selecting suppliers and when specifying materials. We put great effort into processing and surface treatment. These are all cornerstones of a quality product.
The exterior aluminium frames are polyester powder coated. The surface reminiscent of paint on a car.
For frames, mullions and transoms we use FSC®-certified pine.
The surface treatment of wood and aluminium are described below.
We are careful when selecting suppliers and when specifying materials. We put great effort into processing and surface treatment. These are all cornerstones of a quality product.
The exterior aluminium frames are polyester powder coated. The surface reminiscent of paint on a car.
For frames, mullions and transoms we use FSC®-certified pine.
The surface treatment of wood and aluminium are described below.
External colours and surface finishes
Internal colours and surface finishes
Material description and surface treatments for aluminium
Material description and surface treatments for wood
Min./max. sizes and calculation of free opening rules, all opening functions
Here you find the min./max. sizes for all opening functions in VELFAC Ribo windows and patio doors.
To calculate the free opening, please use the formulas below.
To calculate the free opening, please use the formulas below.
Min./max. & free opening sizes - sidehung window
Min./max. & free opening sizes - sideguided window
Min./max. & free opening sizes - sidehung reversible window
Min./max. sizes - fixed light
Min./max. sizes - fixed casement
Min./max. & free opening sizes - topguided window
Min./max. & free opening sizes - tophung reversible window
Min./max. & free opening sizes - 1-leaf casement door
Min./max. & free opening sizes - 2-leaf casement door
Min./max. & free opening sizes - outward opening 1-leaf glazed door
Min./max. & free opening sizes - inward opening 1-leaf glazed door
Min./max. & free opening sizes - 2-leaf glazed patio door
Min./max. & free opening sizes - sliding door
